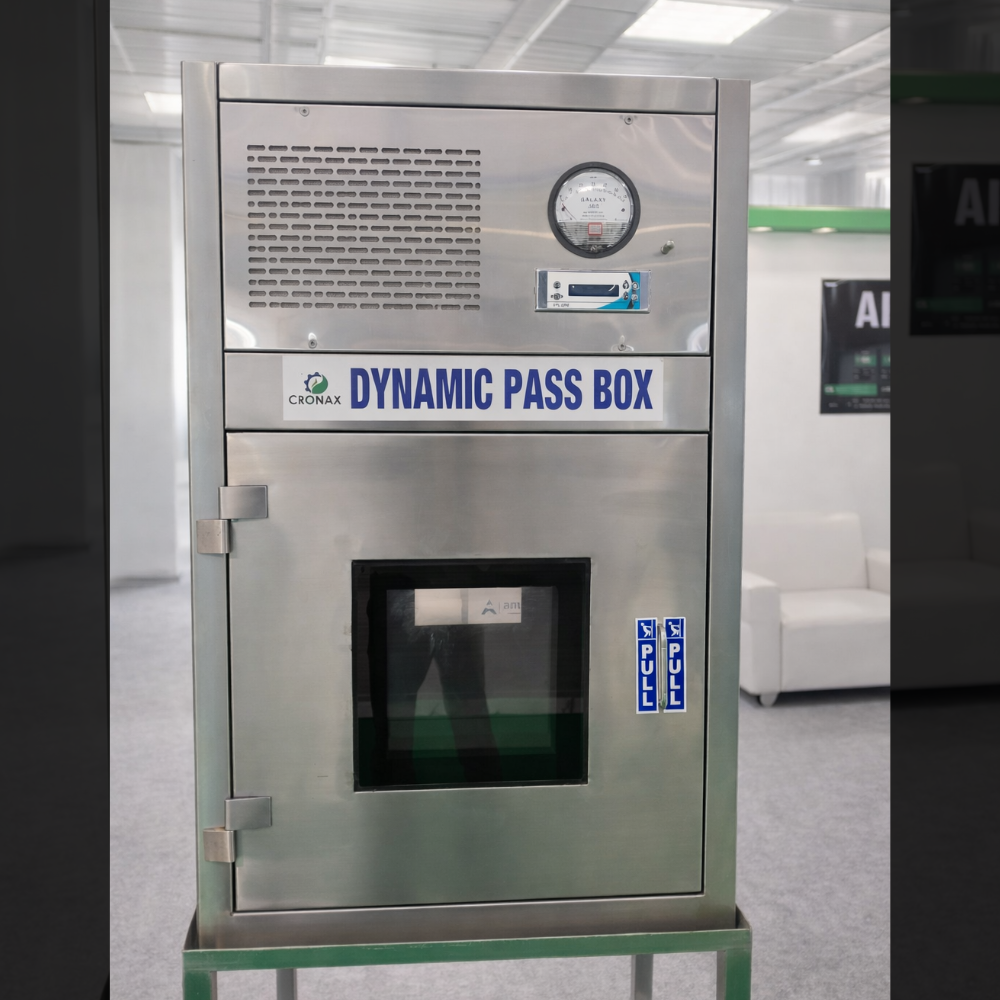

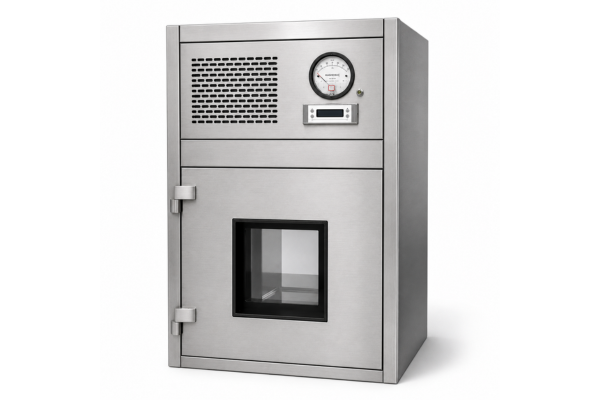

Technical Specifications of Dynamic Pass Box:

Cleanliness: Dust counts exceeds Class 100 requirements as per ISO 14644 & IEST-RP-CC001.3

Velocity at Grill: 90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s) | MOC SS 304 / SS 316 (1 mm / 1.2 mm) | SS 304 Door Hinges and Door Handles

Pre Filter: 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation) (Make: AAF) (American Air Filter)

HEPA Filter: 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply “AAF” HEPA Filter

Controller: Electromagnetic Door Interlocking (Allows to open one door at a time)

1 Year warranty from the date of dispatch for Pass Box Controller set (Magnet, Display, Connection Cables)

Motor Blower: Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower

(1 Year warranty from the date of dispatch for Motor Blower )

Magnehelic Gauge: 0 to 25 MM, To measure differential pressure across HEPA Filter (Make: Omicron / Care / Nextech)

Speed Variable: To adjust the speed of Motor Blower and maintain the required velocity

Electrical:

• LED Light :- Diffused Fluorescent Lighting to provide an intensity of 300 LUX
• UV Light :- 8W-11W (Make: Phillips) (Philips does not provide warranty for UV Lights. Fitting for UV Light has 6 Months Warranty from the date of Supply.
• Display :- Two Line Digital Display with ON/OFF Buttons with LED Indication

Special features → Double Skin Body Construction, Recirculatory Plenum on Both Sides

→ Door Open / Close Delay Audio Visual Alarm UV Hour Meter (Inbuilt)

→ 30 MM Double Skin Doors with View Panel

→ Double Side 5 mm Toughened Glass

Noise Level: Less than 65 DB on scale

Power supply: 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase)

Documentation: DQ, IQ and OQ Documents along with all Necessary Test Certificates
