Why Air Showers Exist (And Why Most Facilities Get Them Wrong)
Walk into any serious manufacturing facility—pharma, electronics, food processing—and you’ll notice one thing immediately: they don’t leave cleanliness to chance.
Dust isn’t just dust in these environments. It’s:
- A rejected batch
- A failed audit
- A product recall
- Or worse, a regulatory shutdown
That’s where an air shower becomes non-negotiable.
An air shower is not just a “blowing air chamber.” It’s a controlled decontamination checkpoint designed to strip contaminants off people, materials, or equipment before they cross into a clean zone.
Facilities that treat air showers as a checkbox installation usually end up with:
- Poor airflow distribution
- Ineffective particle removal
- False sense of compliance
The difference between a basic installation and a properly engineered system shows up in audit reports, product quality, and long-term operational costs.
What is an Air Shower? (In Practical Terms)
An air shower is a self-contained chamber installed at cleanroom entry points where high-velocity, HEPA-filtered air jets remove particulate contamination.
Think of it as a forced air scrubbing system:
- Air is pulled through pre-filters → HEPA filters
- Accelerated through strategically positioned nozzles
- Directed at the user from multiple angles
- Recirculated after capturing particles
Unlike passive solutions, this is active decontamination.
The Working Mechanism — What Actually Happens Inside
Step inside an air shower and the sequence is engineered, not random:
1. Controlled Entry
One door opens. The other remains locked.
This interlocking mechanism prevents pressure imbalance and contamination leakage.
2. Sealed Chamber Activation
Sensors or manual triggers initiate the cycle once the door shuts.
3. High-Velocity Air Discharge
Air exits nozzles at 20–30 m/s, hitting:
- Front
- Back
- Sides
- Sometimes top-down angles
This isn’t gentle airflow—it’s designed to dislodge particles embedded in fabric folds.
4. Particle Capture
Dislodged contaminants don’t just float around:
- Air is pulled back into the system
- Passed through filtration again
- Recirculated clean
5. Exit Authorization
Once the cycle completes (typically 10–30 seconds), the exit door unlocks.
No shortcuts. No overlap. No contamination drift.
Air Velocity, Filtration, and the Physics Behind Performance
Most buyers focus on specs. Few understand what actually matters.
Air Velocity
- Below 20 m/s → weak particle removal
- Above 30 m/s → diminishing returns + discomfort
Sweet spot: 22–25 m/s (optimized systems)
HEPA Filtration
- Standard: 99.97% efficiency at 0.3 microns
- Critical for capturing fine particulate matter
Nozzle Design
- Poor placement = dead zones
- Proper geometry = full-body coverage
This is where engineering separates commodity suppliers from serious manufacturers.
Contact Us
Air Shower – Technical Specifications
1. General Description
An air shower is a self-contained decontamination unit installed at cleanroom entry points to remove particulate contamination from personnel and/or materials using high-velocity HEPA-filtered air.
2. Construction (MOC – Material of Construction)
| Component | Specification |
|---|---|
| External Body | Stainless Steel SS 304 / SS 316 (optional) |
| Internal Finish | Hairline / Matte Finish (GMP compliant) |
| Base / Floor | SS Chequered Plate / Epoxy Coated |
| Doors | Single / Double Leaf, SS / Powder Coated |
| Viewing Window | Toughened Glass (5–8 mm thick) |
| Door Sealing | EPDM / Silicon Gaskets |
3. Filtration System
| Parameter | Specification |
|---|---|
| Pre Filter | Efficiency: 85–90% (10 micron) |
| Fine Filter (Optional) | 95% (5 micron) |
| HEPA Filter | Efficiency: 99.97% @ 0.3 microns |
| Filter Type | Mini-pleat / Deep pleat |
| Filter Housing | Gel seal / Gasket type |
4. Airflow & Performance Parameters
| Parameter | Specification |
|---|---|
| Air Velocity at Nozzle | 20–30 m/s |
| Air Volume | 1000–2500 CFM (depends on size) |
| No. of Nozzles | 12–48 (customizable) |
| Air Change Rate | High recirculation (90–95%) |
| Noise Level | ≤ 75 dB |
| Cycle Time | Adjustable (10–30 seconds) |
5. Blower / Motor Specifications
| Parameter | Specification |
|---|---|
| Type | Direct Drive / Belt Driven |
| Motor Rating | 0.75 HP – 3 HP |
| Power Supply | 230V / 415V, 50 Hz |
| Blower Material | Aluminium / GI / SS |
| Static Pressure | High pressure centrifugal blower |
6. Electrical & Control System
| Parameter | Specification |
|---|---|
| Control Panel | PLC / Microprocessor based |
| Display | LED / Touch Panel (optional) |
| Sensors | IR / Photoelectric |
| Door Interlocking | Electromagnetic Interlock |
| Emergency Stop | Provided |
| Indications | Power ON, Blower ON, Cycle Active |
7. Operational Features
- Automatic / Manual operation
- Adjustable air shower cycle timing
- Interlocking door system (one door open at a time)
- Audio/visual indicators during operation
- Delay mechanism for safe exit
8. Dimensions & Configuration
| Type | Typical Size (mm) |
|---|---|

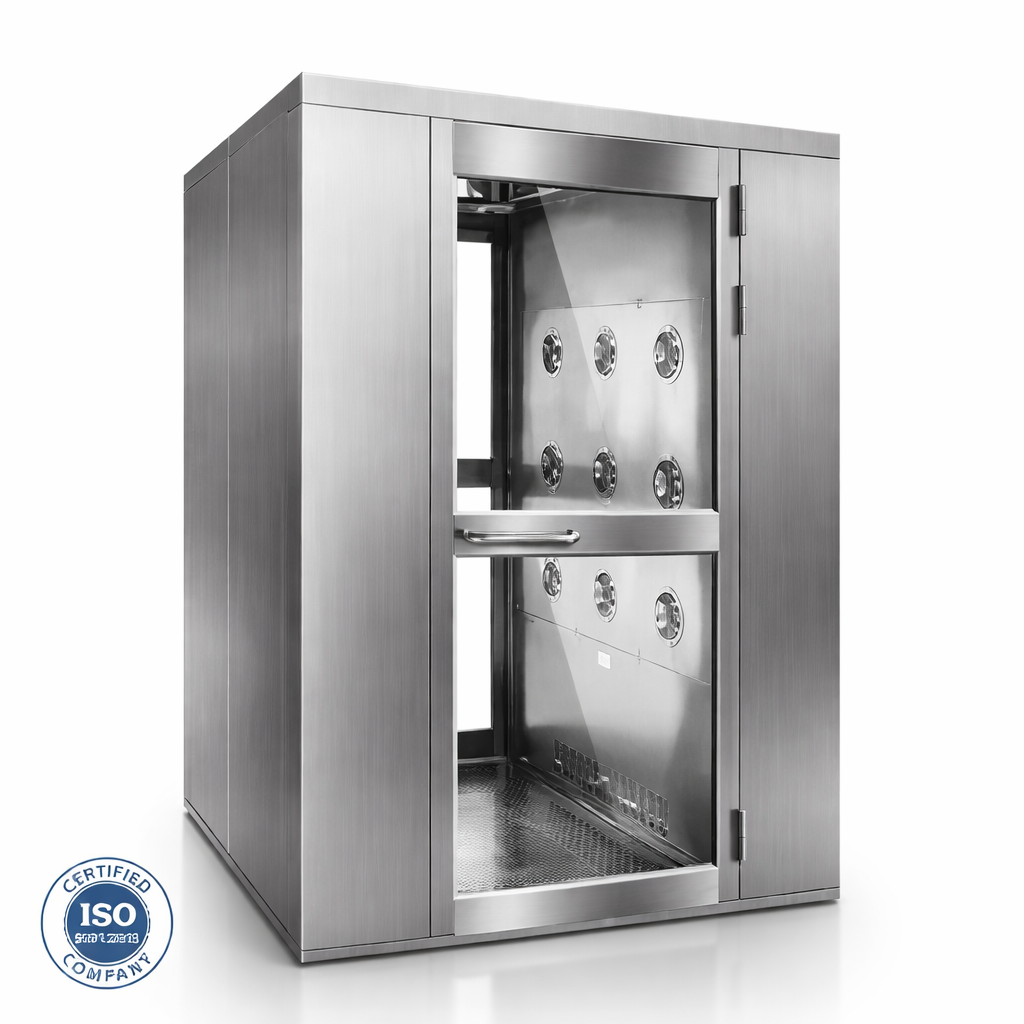

| Single Person | 1000 x 1000 x 2100 |

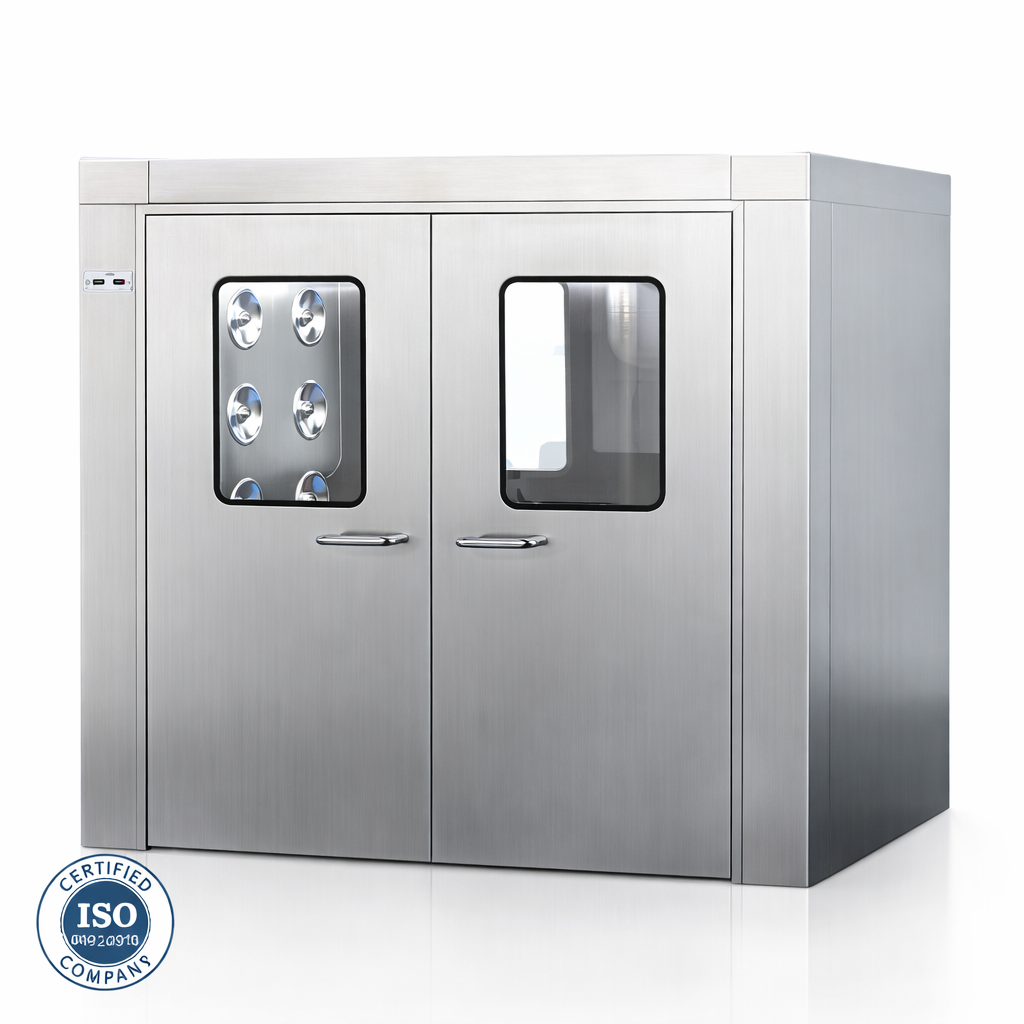

| Two Person | 1400 x 1000 x 2100 |
| Tunnel Type | Custom (length-based) |
| Material Air Shower | Custom (based on load size) |
9. Compliance & Standards
- ISO 14644 (Cleanroom Standards)
- GMP / WHO Compliance
- FDA Guidelines (where applicable)
- CE Certified Components (optional)
10. Optional Features
- UV Light for sterilization
- Air Ionizer system
- Automatic sliding doors
- RFID / Access control integration
- Touchless operation
- Data logging & IoT monitoring
11. Installation Requirements
- Levelled flooring
- Proper electrical supply (single/three phase)
- Integration with cleanroom pressure system
- Sealed installation to avoid leakage
12. Maintenance Requirements
- Pre-filter cleaning/replacement: 15–30 days
- HEPA filter replacement: 6–12 months (based on usage)
- Periodic airflow validation
- Nozzle cleaning and inspection
Functions of an Air Shower
1. Removal of Surface Contaminants
The primary role of an air shower is straightforward: strip loose particles from surfaces before entry into a clean area.
High-velocity air jets target:
- Dust on garments
- Fibers trapped in fabric folds
- Skin flakes and airborne particulates
This process significantly reduces the contamination load entering the cleanroom.
2. Controlled Entry Barrier
An air shower acts as a physical and operational checkpoint between uncontrolled and controlled environments.
With interlocking doors:
- Only one door opens at a time
- External contaminants are prevented from entering directly
- Internal pressure balance is maintained
This makes the air shower a transition zone, not just a cleaning chamber.
3. Contamination Containment
Particles removed during the air shower cycle don’t remain in the chamber.
Instead:
- Air is continuously recirculated
- Contaminants are captured through HEPA filtration
- Clean air is reintroduced into the system
This prevents recontamination and ensures a closed-loop cleaning process.
4. Maintenance of Cleanroom Standards
Cleanrooms operate under strict classifications (ISO/GMP). Even minor contamination can lead to non-compliance.
Air showers help:
- Maintain required cleanliness levels
- Reduce particle count before entry
- Support audit readiness
They act as a first-line defense in contamination control strategy.
5. Reduction of Cross-Contamination Risks
Movement of people and materials is one of the biggest contamination sources.
Air showers minimize:
- Transfer of particles between zones
- Risk of batch contamination
- Exposure to sensitive processes
This is especially critical in pharma, food, and electronics industries.
6. Improvement in Product Quality
Cleaner environments directly impact output.
By reducing contamination at entry:
- Product rejection rates decrease
- Process consistency improves
- Quality standards are easier to maintain
Over time, this translates into lower operational losses.
7. Support for Regulatory Compliance
Industries governed by GMP, ISO, and FDA guidelines require controlled entry protocols.
Air showers help facilities:
- Meet compliance requirements
- Pass inspections and audits
- Maintain documentation-backed hygiene systems
They’re often expected—not optional—in regulated environments.
8. Personnel Awareness & Discipline
One underrated function: behavioral control.
The presence of an air shower:
- Reinforces hygiene protocols
- Creates a structured entry routine
- Reduces casual movement into clean zones
It acts as both a technical system and a psychological checkpoint.
Applications of Air Shower
1. Pharmaceutical Manufacturing
Pharma environments operate under strict GMP and WHO guidelines, where even microscopic contamination can compromise an entire batch.
Air showers are used at:
- Entry points to sterile production zones
- Tablet, injectable, and formulation areas
- Controlled packaging sections
They help maintain:
- Low particle counts
- Sterility standards
- Audit compliance
In many pharma setups, air showers are not optional—they’re part of validated cleanroom protocols.
2. Food Processing & Packaging Industry
Food safety isn’t just about ingredients—it’s about environment control.
Air showers are installed in:
- Ready-to-eat food production units
- Dairy and beverage plants
- Packaging and sealing zones
They prevent:
- Dust and foreign particles
- Hair and fiber contamination
- Microbial transfer from external areas
For brands, this directly impacts consumer safety and reputation.
3. Electronics & Semiconductor Industry
In electronics manufacturing, contamination isn’t visible—but the damage is.
Even tiny particles can:
- Short circuit micro-components
- Affect circuit precision
- Reduce product lifespan
Air showers are critical in:
- PCB manufacturing
- Semiconductor fabs
- Precision electronics assembly
They ensure ultra-clean environments required for high-precision production.
4. Hospitals, Laboratories & Healthcare
Healthcare environments demand strict control over contamination to prevent infections.
Air showers are used in:
- Operation theatre support zones
- Research laboratories
- Biotech and vaccine facilities
They help:
- Reduce microbial load
- Maintain sterile conditions
- Protect sensitive research and patients
5. Cleanroom Entry Zones (General Industrial Use)
Across industries, air showers are installed wherever there is a controlled vs uncontrolled boundary.
Typical locations:
- Cleanroom entry corridors
- Gowning areas
- ISO-classified zones
They serve as a first barrier before contamination enters critical spaces.
6. Material Transfer & Logistics Areas
Contamination doesn’t only come from people—materials are a major source.
Material air showers are used for:
- Raw material entry
- Packaging supplies
- Equipment transfer
They remove:
- Dust from cartons
- External contaminants from pallets
- Particles accumulated during transport
This is especially useful in packaging, pharma, and export-oriented facilities.
7. Aerospace & Precision Engineering
Highly sensitive components require near-zero contamination environments.
Air showers are used in:
- Aerospace assembly units
- Optical instrument manufacturing
- Precision engineering setups
Even a minor particle can lead to:
- Performance failure
- Safety risks
8. Paint Shops & Automotive Industry
Surface finishing quality depends heavily on environmental cleanliness.
Air showers help:
- Remove dust before entering paint booths
- Prevent surface defects
- Improve coating finish quality
This reduces:
- Rework
- Material wastage
- Quality rejection
9. Textile & Specialty Manufacturing
Industries producing:
- Technical textiles
- Medical fabrics
- Cleanroom garments
use air showers to:
- Control fiber shedding
- Maintain cleanliness during production
For a comprehensive understanding of our Air Shower's technical specifications, please download our catalogue.
Types of Air Shower
Feel free to connect with our team of Experts to discuss your requirement!
ENTRANCE AUTOMATION
- High Speed Doors
- Sectional Overhead Doors
- Motorised Rolling Shutters
- Loading Bay Equipment
- Automatic Sliding Doors
- Entrance Doors
Pan india presence
- Bangalore
- Mumbai
- Chennai
- Hyderabad
- Kolkata
- Pune
- Delhi
- Gujarat
- Ahmedabad
- Faridabad
- Gurugram
- Noida
- Amritsar
GLOBAL PRESENCE
- Dubai (UAE)
- USA
- Nepal
- Bali
- Bangladesh
- South Africa
- Sri Lanka
EXPLORE
- Cronax Certificates
- Blog Articles
- Enquiry
- FAQ's
- Complaint Registration
BROCHURE
Pan india presence
- Bangalore
- Mumbai
- Chennai
- Hyderabad
- Kolkata
- Pune
- Delhi
- Gujarat
- Ahmedabad
- Faridabad
- Gurugram
- Noida
- Amritsar
GLOBAL PRESENCE
- Dubai (UAE)
- USA
- Nepal
- Bangladesh
- South Africa
Certified by
© 2013-2024 Copyright Cronax Industries – All Rights Reserved.
