Gratings are available in different materials, sizes, and configurations based on industrial applications. Below are the key technical specifications:

1. Material Options

• Mild Steel (MS) Gratings – Galvanized or painted for corrosion resistance.

• Stainless Steel (SS) Gratings – Available in SS 304, SS 316 for high corrosion resistance.

• Aluminum Gratings – Lightweight and corrosion-resistant, ideal for marine and architectural applications.

2. Load-Bearing Capacity

• Light Duty Gratings: Suitable for pedestrian walkways and platforms.

• Medium Duty Gratings: Used in industrial flooring, drainage covers, and stair treads.

• Heavy Duty Gratings: Designed for vehicular loads, such as highways, docks, and airports.

3. Surface Type

• Plain Gratings: Standard surface, suitable for dry areas.

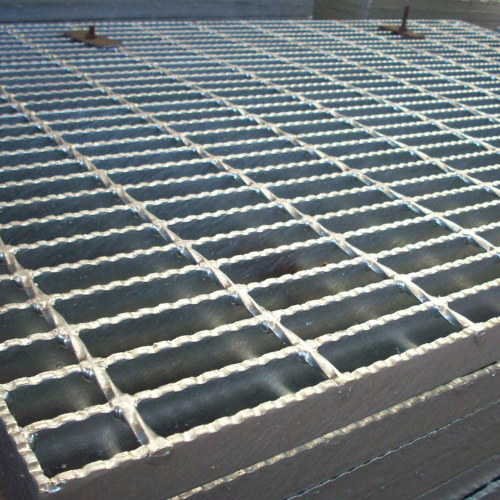

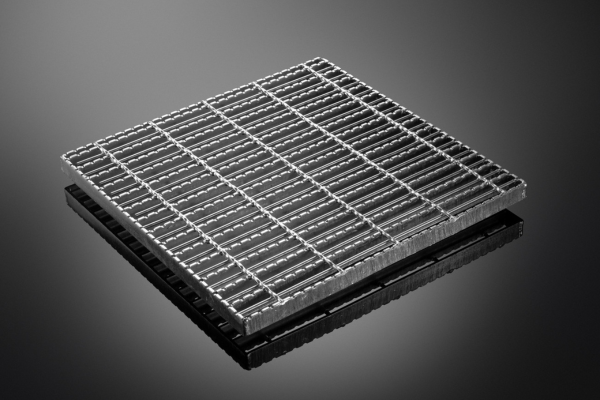

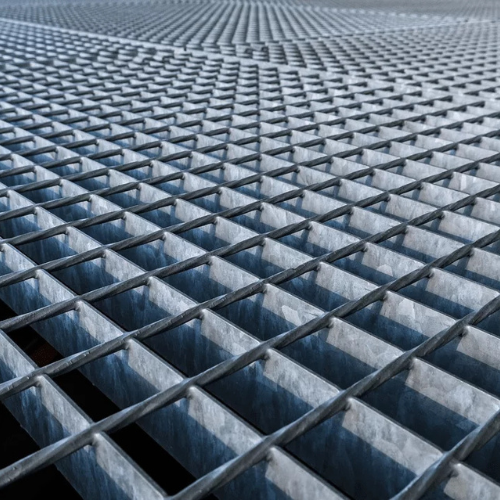

• Serrated Gratings: Provides enhanced slip resistance in wet or oily conditions.

4. Standard Bar Spacing

• 25 mm, 30 mm, 40 mm, 50 mm – Common spacing for industrial applications.

• Special Spacing: Available as per client requirements.

5. Load Bar Thickness & Depth

• Thickness: 3 mm, 4 mm, 5 mm, 6 mm, or as per requirement.

• Depth: 20 mm to 50 mm, depending on the application and load-bearing needs.

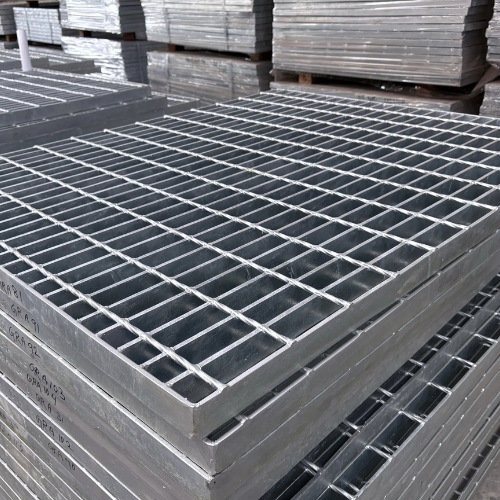

6. Panel Size

• Standard Size: 1000 mm x 6000 mm, 1200 mm x 6000 mm.

• Custom Sizes: Available as per project requirements.

7. Finishing Options

• Hot-Dip Galvanized (HDG): Enhances durability and corrosion resistance.

• Powder Coated: Available in different colors for aesthetic and additional protection.

• Electro-Polished (For SS Gratings): Provides a smooth, corrosion-resistant finish.

8. Fabrication & Fixing

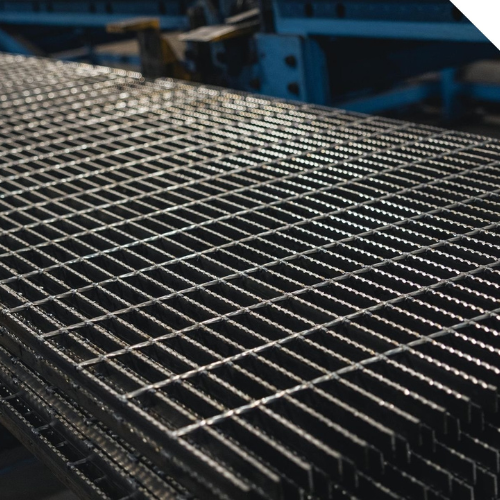

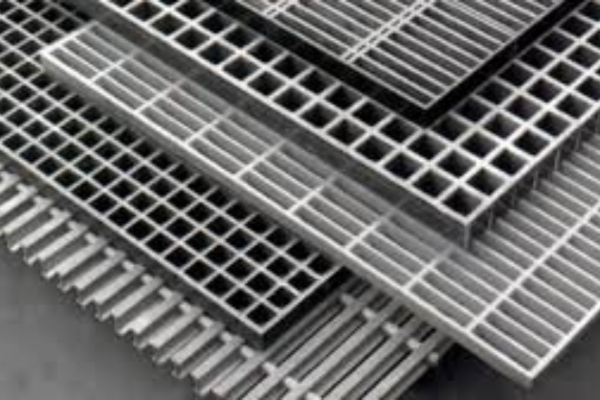

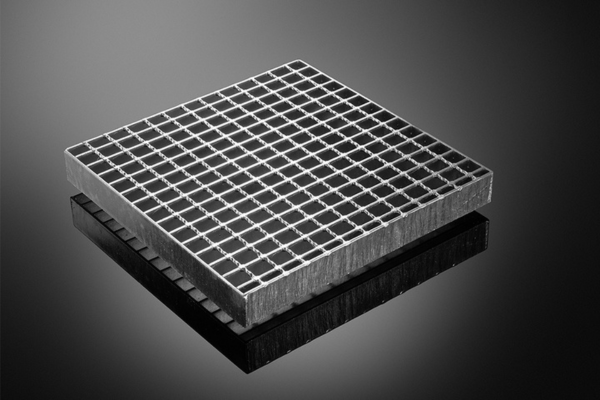

• Welded Gratings: Load-bearing bars and cross bars welded together for strength.

• Pressed Lock Gratings: Cross bars are pressed and locked into bearing bars.

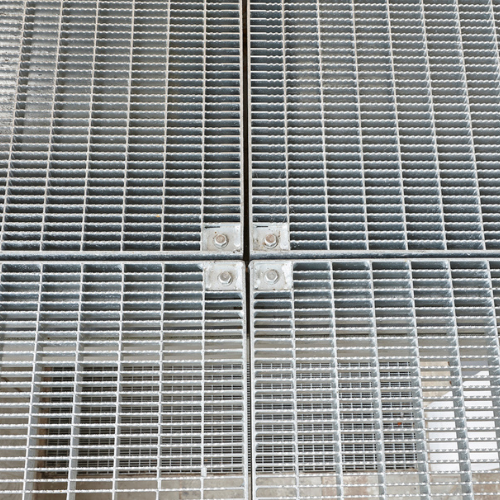

• Clip Fixing: Gratings can be fixed using saddle clips for easy installation.

9. Compliance & Standards

• IS 2062 (For Mild Steel Gratings) – Ensures high structural strength.

• ASTM A36 / A123 (For Galvanized Gratings) – Provides corrosion resistance.

• BS 4592 (For Industrial Flooring & Walkways) – International standard for metal gratings.

• ISO 9001 Certified Manufacturing – Ensures quality and durability.

Here are some brief application descriptions for gratings:

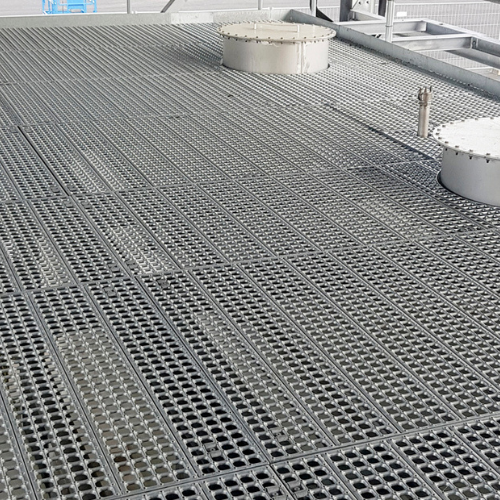

1. Industrial Flooring: Used in factories, warehouses, and processing plants for safe and durable walking surfaces.

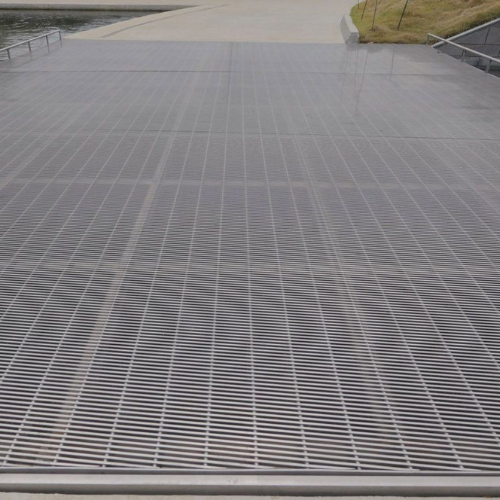

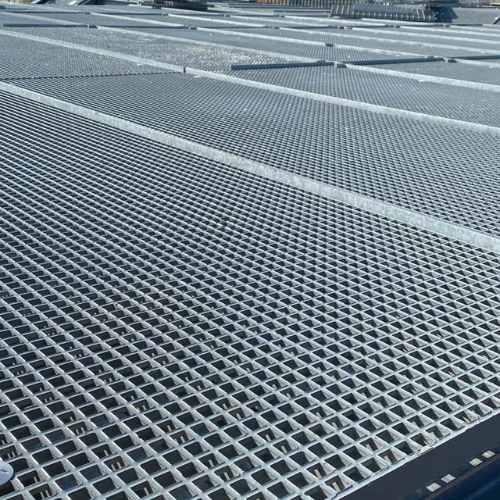

2. Walkways & Platforms: Ideal for elevated walkways, maintenance platforms, and scaffolding in industrial and commercial settings.

3. Drainage Covers: Used in roads, sidewalks, and factories to prevent water accumulation while allowing proper drainage.

4. Security Fencing: Applied in high-security areas for barriers, ventilation screens, and protective enclosures.

5. Stair Treads: Common in industrial and commercial buildings to enhance slip resistance and safety.

6. Oil & Gas Industry: Used on offshore rigs, refineries, and petrochemical plants for corrosion-resistant flooring and structures.

7. Food Processing & Hygiene Areas: Stainless steel gratings are used in food and pharmaceutical industries to meet hygiene standards.

8. Public Infrastructure: Found in bridges, railway stations, and metro stations for durability and load-bearing capacity.

9. HVAC & Ventilation: Used for air intake and exhaust systems, ensuring airflow while providing protection.

10. Power Plants: Installed in power stations for walkways, cable trays, and maintenance platforms.
